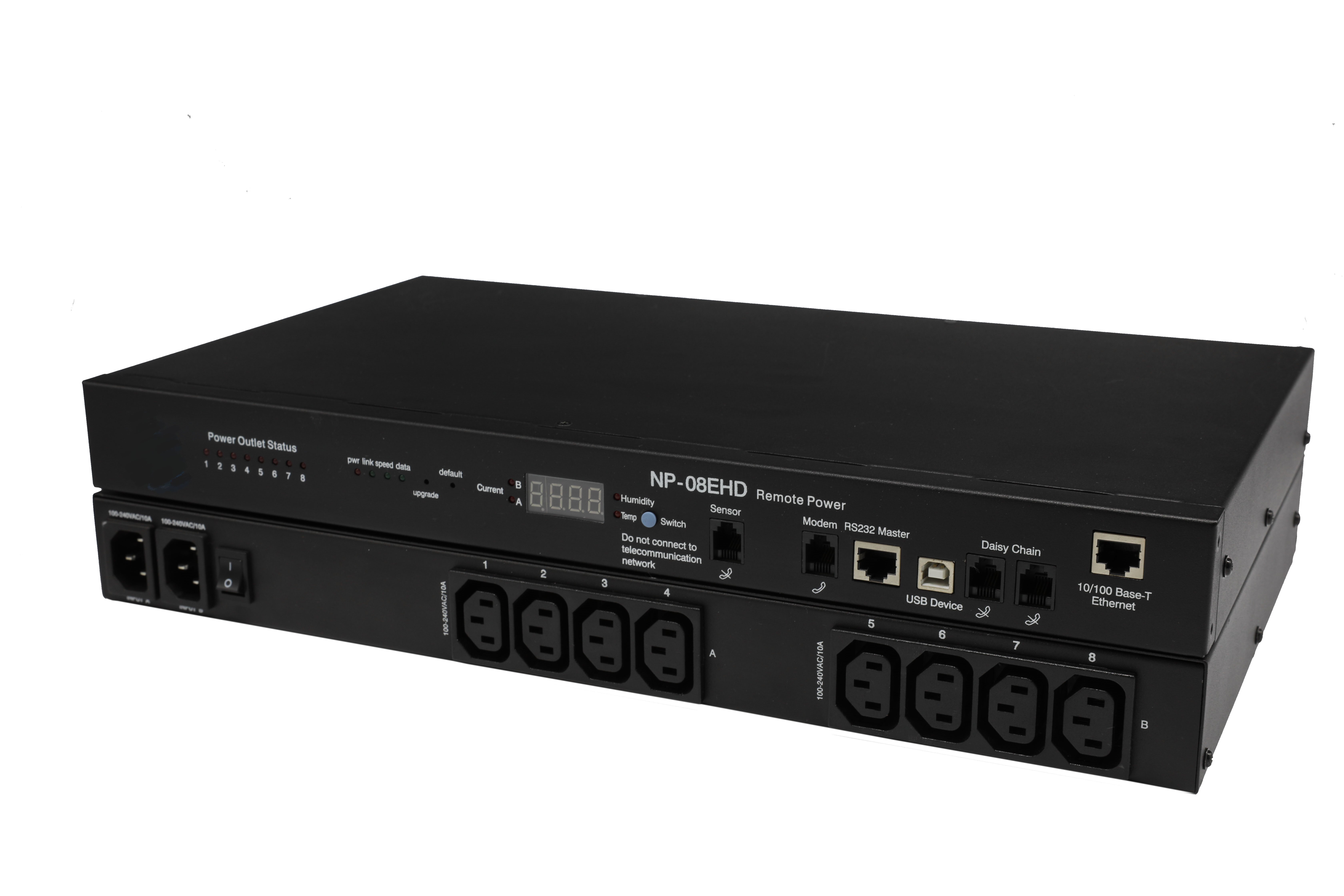

NP-08EHD PDU provides intelligent remote power management operations, allowed by diversified ways to access and control including network protocols and local etc control mode, multistage system administrative privileges, network security account can be simple, rapid and reliable implementation of the power control，parameter monitoring and status of the equipment real-time detection.
|
Features |
l One RS232 console port & one 10M/100M-T RJ45 Ethernet port, support
AUTO-MDIX. l One sensor port and three digital display
tube to display
temperature and humidity. l Support
Daisy Chain l Support
DHCP or static
IP configure l Integrated SNMP agent and Trap notification message capability l POP3/SMTP for sending and receiving control
commands or user data l Support password protecting user
management，8 user at most, and the port
owner and access permission could be set l Support
8 ports control，and could be customized l Support
port
name,
power on status and owner setting l User’s software upgrading
is available |
|
Functions |
l Web,Telnet,RS232,SNMP,Email management access l Local and remote temperature/humidity/current checking and display. l Current alarm threshold by locale, email, trap methods l Event timers/clock for each
power outlet. l Switch and reboot each outlets l Port reservation for different permissions. l Auto-ping for each power outlet by ICMP ping package, and can be reboot. l Simple internet firewall, forbid remote access
illegally l Daisy chain max.32
units switched PDUs |
