No. |
Item |
Basic
Description |
|
|
|
1 |
Product Series |
Monitor |
|
|
|
2 |
Receptacle Type |
Outputs-IEC
60320-C13（lockable） |
|
|
|
3 |
Outlets |
Sixteen outlets- IEC 60320-C13（lockable） |
|
|
|
4 |
Input |
IEC60309 &
Cable |
|
|
|
5 |
Installation |
Vertical |
|
|
|
6 |
Input plug |
IEC60309 IP44 32A/230VAC
2P+E industrial connector |
|
|
|
7 |
Monitor module |
LED current
display ;Current overload alarm; Hot plug |
|
|
|
8 |
Protect module |
N |
|
|
|
9 |
Housing color |
Yellow |
|
|
|
10 |
Specifications of input cable |
3*6mm2 ZA RVV -3m long cable(black) |
|
|
|
11 |

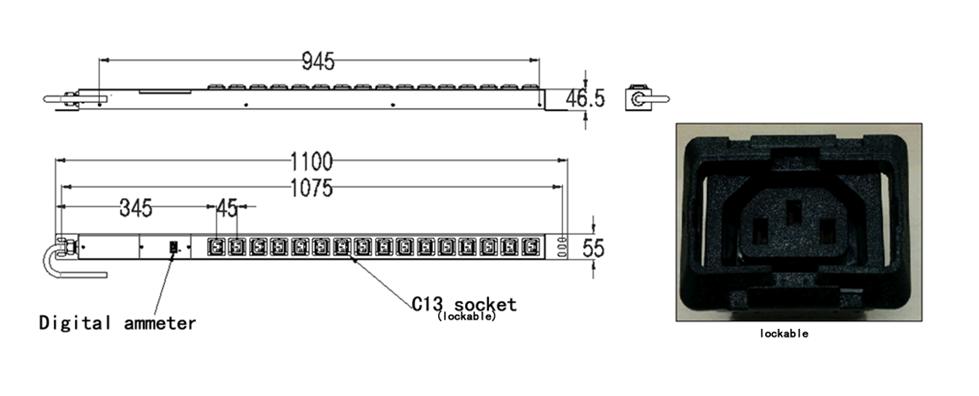

Product dimension |
Length x width x high = 1100 x 55 x 46.5mm |
|
|
|
12 |
Mounting hole center distance |
1075mm |
|
|
|
13 |
Housing length |
1100mm |
|
|
|
14 |
Accessories |
Female IEC60309 |
|
|
|
15 |
Product marking |
Product name |
PDU |
|
|
Model |
SQ16E1F6DB3 |
|||
|
Rated voltage |
240V AC |
|||
|
Rated current |
32A |
|||
|
MAX current |
32A |
|||
|
MAX power |
|
|||
|
Safety |
|
|||
|
LOGO |
|
|||
|
Maker |
SQ-ELECTRONICS |
|||
