No. |
Item |
Basic
Description |
|
|
1 |
Product Series |
Monitor |
|
|
2 |
Receptacle Type |
Outputs-GB1002 |
|
|
3 |
Outlets |
Twenty-four outlets-GB1002
10A（every load 12 outlets） |
|
|
4 |
Input |
Cable |
|
|
5 |
Installation |
Vertical |
|
|
6 |
Input plug |
|
|
|
7 |
Monitor module |
LED current
display ;Current overload alarm; Hot plug |
|
|
8 |
Protect module |
Each socket with
a 10A open |
|
|
9 |
Housing color |
Black |
|
|
10 |
Specifications of input cable |
|
|
|
11 |

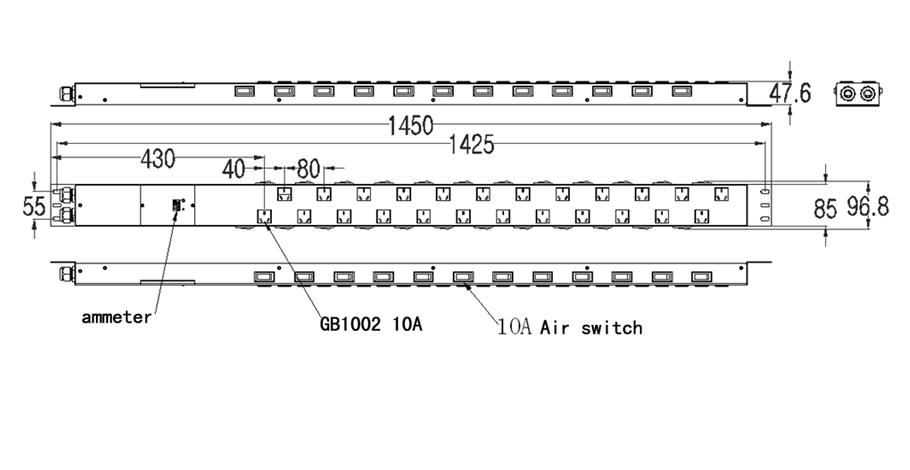

Product dimension |
Length x width x high = 1450 x 85 x 47.6mm |
|
|
12 |
Mounting hole center distance |
1425mm |
|
|
13 |
Housing length |
1450mm |
|
|
14 |
Accessories |
Female IEC60309 |
|
|
15 |
Product marking |
Product name |
Rack PDU |
|
Model |
SQ24G509(BD)A2 |
||
|
Rated voltage |
230V AC |
||
|
Rated current |
25A(each
load) |
||
|
MAX current |
25A(each load) |
||
|
MAX power |
|
||
|
Safety |
|
||
|
LOGO |
|
||
|
Maker |
SQ-ELECTRONICS |
||
