No. |
Item |
Basic
Description |
|
|
1 |
Product Series |
Basic |
|
|
2 |
Receptacle Type |
Outputs
GB1002 |
|
|
3 |
Outlets |
Nine outlets-GB1002 10A;nine outlets-GB1002 16A |
|
|
4 |
Input |
IEC 60309 &
cable |
|
|
5 |
Installation |
Vertical Reverse
Installation |
|
|
6 |
Input plug |
IEC60309 IP44 32A/230VAC
2P+E industrial connector |
|
|
7 |
Monitor module |
N |
|
|
8 |
Protect module |
32A air switch |
|
|
9 |
Housing color |
Black |
|
|
10 |
Specifications of input cable |
3*6mm^2，ZA RVV -2m long cable(black) |
|
|
11 |

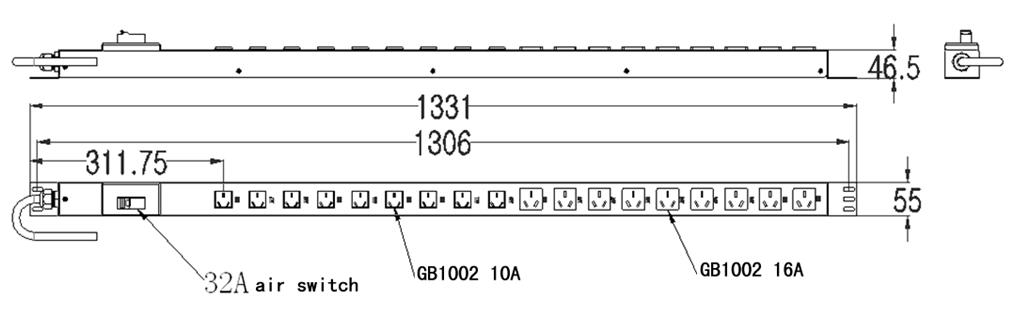

Product dimension |
Length x width x high =1331 x 55 x 46.5mm |
|
|
12 |
Mounting hole center distance |
1306mm |
|
|
13 |
Housing length |
1331mm |
|
|
14 |
Accessories |
Female
IEC60309 |
|
|
15 |
Product making |
Product name |
Rack PDU |
|
Model |
SQ18(9G9g)1F6BA2 |
||
|
Rated voltage |
220V AC |
||
|
Rated current |
32A |
||
|
Max current |
32A |
||
|
Max power |
|
||
|
Safety |
|
||
|
LOGO |
|
||
|
Maker |
SQ-ELECTRONICS |
||
