No. |
Item |
Description |
|||
|
01 |
Product Series |
Basic |
|||
|
02 |
Receptacle Type |
IEC
60320-C13,IEC 60320-C19 |
|||
|
03 |
Output |
26
Outlets-IEC 60320-C13 & 4 Outlets-IEC 60320-C19 |
|||
|
04 |
Input |
reserved terminal connector |
|||
|
05 |
Installation |
Vertical
reverse, free tools hanging installation |
|||
|
06 |
Input plug |
N |
|||
|
07 |
Monitor module |
N |
|||
|
08 |
Protect module |
N |
|||
|
09 |
Housing color |
Black |
|||
|
10 |
Specifications of input cable |
|
|||
|
11 |

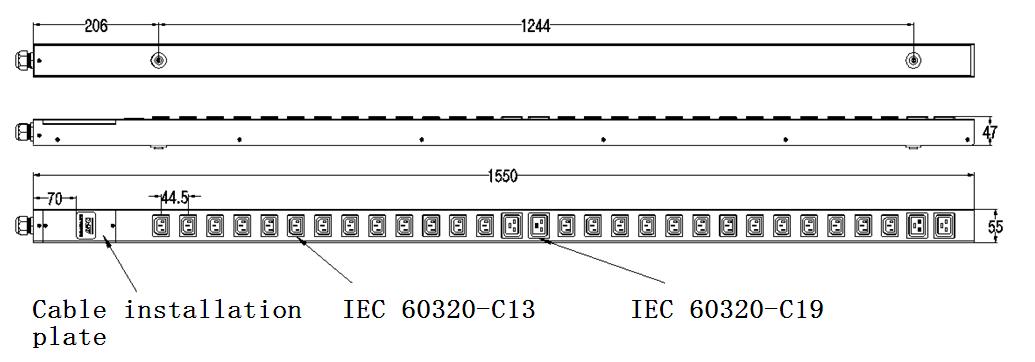

Product dimensions |
Length x width x high =1550 x 55 x 47 mm |
|||
|
12 |
Mounting hole center distance |
1244mm |
|||
|
13 |
Housing length |
1550mm |
|||
|
14 |
Accessories |
Mounting
lugs |
|||
|
15 |
Product marking |
Product name |
PDU |
MAX current |
32A |
|
Model |
SQ30(26E4e)5060A2 |
Safety |
N/A |
||
|
Rated voltage |
220V DC |
Maker |
SQ-ELECTRONICS |
||
|
Rated current |
32A |
|
|
||
