No. |
Item |
Basic Description |
|
|
1 |
Product Series |
Basic |
|
|
2 |
Receptacle Type |
GB1002
10A 16A |
|
|
3 |
Outlets |
18 Outlets- GB1002 16A &
12 Outlets- GB1002 10A |
|
|
4 |
Input |
IEC 60309 &
cable |
|
|
5 |
Installation |
vertical |
|
|
6 |
Input plug |
IEC60309 IP44 16A/250VAC
4P+E industrial connector |
|
|
7 |
Monitor module |
N |
|
|
8 |
Protect module |
N |
|
|
9 |
Housing color |
Black |
|
|
10 |
Specifications of input cable |
5*4mm^2 ZA RVV-2m long cable(black) |
|
|
11 |

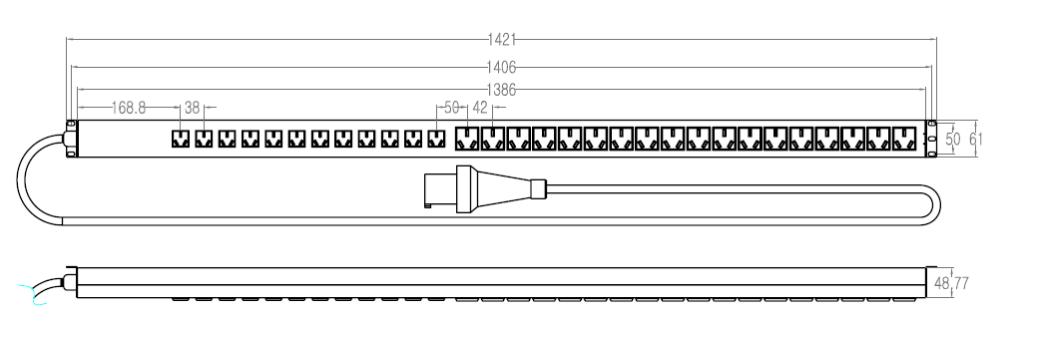

Product dimension |
Length x width x high =1421 x 61 x 48.7mm |
|
|
12 |
Mounting hole center distance |
1406mm |
|
|
13 |
Housing length |
1386mm |
|
|
14 |
Accessories |
Female IEC
60309 |
|
|
15 |
Product making |
Product name |
PDU |
|
Model |
SQ30(18g12G)1C00A1 |
||
|
Rated voltage |
380V three
phase AC |
||
|
Rated current |
16A each
phase |
||
|
MAX current |
16A each phase |
||
|
MAX power |
|
||
|
Safety |
N |
||
|
LOGO |
|
||
|
Maker |
SQ-ELECTRONICS |
||
