No. |
Item |
Basic Description |
|
|
1 |
Product Series |
Basic |
|
|
2 |
Receptacle Type |
GB1002 10,GB1002 16A |
|
|
3 |
Outlets |
22 outlets- GB1002 10A，2 outlets-GB1002 16A |
|
|
4 |
Input |
IEC60309 &
Cable |
|
|
5 |
Installation |
Vertical Inverse
Installation |
|
|
6 |
Input plug |
IEC60309 IP44 16A/400V
AC 3P+N+PE industrial connector |
|
|
7 |
Monitor module |
||
|
8 |
Protect module |
N |
|
|
9 |
Housing color |
Black |
|
|
10 |
Specifications of input cable |
5*4mm2 ZA RVV-2m
long |
|
|
11 |

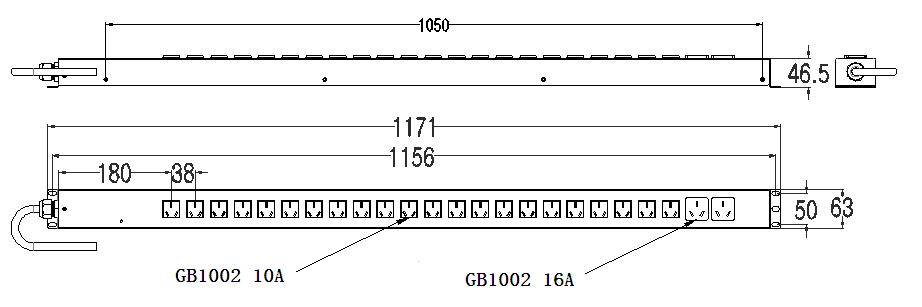

Product dimension |
Length x width x high =1171x63x46.5mm |
|
|
12 |
Mounting hole center distance |
1156mm |
|
|
13 |
Housing length |
1171mm |
|
|
14 |
Accessories |
Female IEC60309 |
|
|
15 |
Product marking |
Product name |
PDU |
|
Model |
SQ24(22G2g)1C30A1 |
||
|
Rated voltage |
380V three
phase AC |
||
|
Rated current |
16A each
phase |
||
|
MAX current |
16A each phase |
||
|
Safety |
N/A |
||
|
Maker |
SQ-ELECTRONICS |
||
