No. |
Item |
Basic Description |
|
|
1 |
Product Series |
Basic |
|
|
2 |
Receptacle Type |
GB1002 10A |
|
|
3 |
Outlets |
Eighteen |
|
|
4 |
Input |
IEC60309 |
|
|
5 |
Installation |
Vertical
reverse installation |
|
|
6 |
Input plug |
IEC60309 IP44 16 A/250V AC 2P+E |
|
|
7 |
Monitor module |
Power
Indicator |
|
|
8 |
Protect
module |
10KA Built-in
Lightning Protector |
|
|
9 |
Housing
color |
Black |
|
|
10 |
Specifications of input
cable |
3*4mm2 ZA RVV -2m
long cable |
|
|
11 |

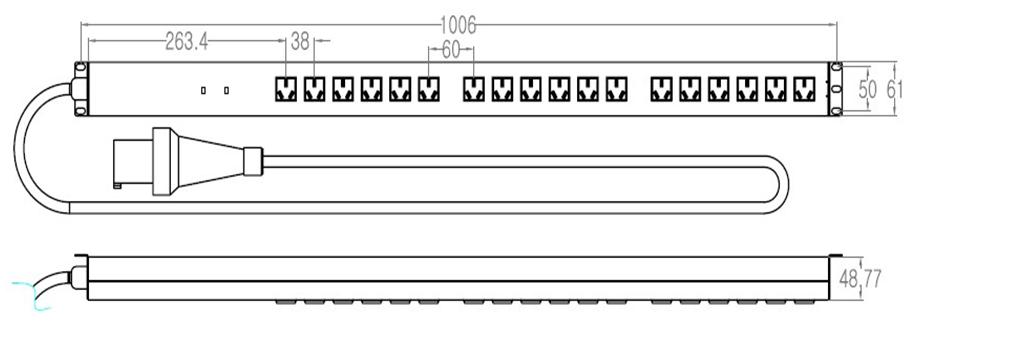

Product dimension |
Length
x width x high = 1201 X 61 X48.7mm |
|
|
12 |
Mounting hole center distance |
1006mm |
|
|
13 |
Housing length |
986mm |
|
|
14 |
Accessories |
Female IEC60309 |
|
|
15 |
Product making |
Product name |
Rack PDU |
|
Model |
SQ18G1F30A2 |
||
|
Rated voltage |
220V |
||
|
Rated current |
16A |
||
|
MAX current |
16A |
||
|
MAX power |
|
||
|
Safety |
|
||
|
LOGO |
|
||
|
Maker |
SQ-ELECTRONICS |
||
