No. |
Item |
Basic
description |
|
|
1 |
Product Series |
Basic |
|
|
2 |
Receptacle Type |
IEC 60320-C13(Lockable)、IEC 60320-C19 |
|
|
3 |
Outlets |
Sixteen outlets- IEC 60320-C13(Lockable)，four outlets- IEC 60320-C19 |
|
|
4 |
Input |
IEC 60309 &
cable |
|
|
5 |
Installation |
Vertical Reverse
Installation |
|
|
6 |
Input plug |
IEC60309 IP44 32A/230V
AC 2P+PE industrial connector |
|
|
7 |
Monitor module |
N |
|
|
8 |
Protect module |
1*32A/P AC air switch |
|
|
9 |
Housing color |
Black |
|
|
10 |
Specifications of input cable |
3*6mm^2 ZA RVV -2m long cable(black) |
|
|
11 |

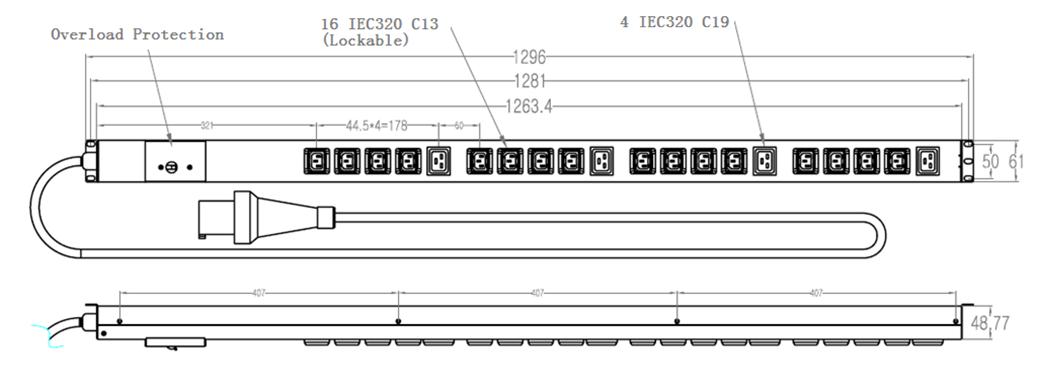

Product dimension |
Length x width x high =1296X61X70.8mm |
|
|
12 |
Mounting hole center distance |
1281mm |
|
|
13 |
Housing length |
1296mm |
|
|
14 |
Accessories |
Female IEC
60309 |
|
|
15 |
Product making |
Product name |
PDU |
|
Model |
SQ20(16E4e)1F6BA2 |
||
|
Rated voltage |
220V AC |
||
|
Rated current |
32A |
||
|
MAX current |
32A |
||
|
MAX power |
|
||
|
Safety |
|
||
|
LOGO |
|
||
|
Maker |
SQ-ELECTRONICS |
||
