No. |
Item |
Basic
Description |
|||
|
01 |
Product Series |
Basic |
|||
|
02 |
Receptacle Type |
Outputs IEC
60320-C13,Outputs IEC 60320-C19 |
|||
|
03 |
Outlets |
Twelve
outlets-IEC 60320-C13,two outlets-IEC 60320-C19 |
|||
|
04 |
Input |
IEC 60309 &
Cable |
|||
|
05 |
Installation |
Vertical |
|||
|
06 |
Input plug |
IEC60309 IP44 32A/230VAC
2P+PE industrial connector |
|||
|
07 |
Monitor module |
N |
|||
|
08 |
Protect module |
N |
|||
|
09 |
Housing color |
Black |
|||
|
10 |
3*6mm2 ZA-RVV -1.5m
long cable(black) |
||||
|
11 |

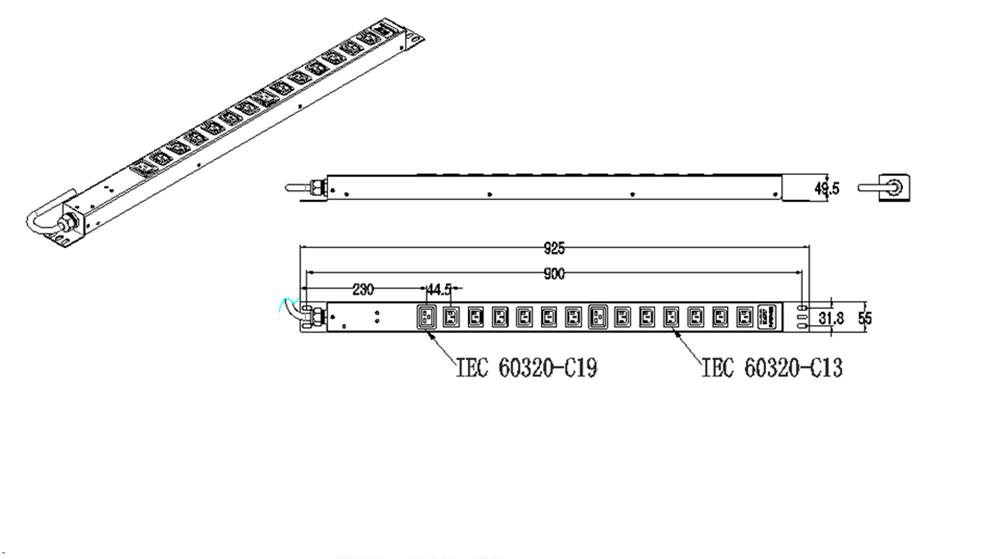

Product dimension |
Length x wide x high =925x 55 x 49.5mm |
|
||
|
12 |
Mounting hole center distance |
900mm |
|||
|
13 |
Housing length |
925mm （Contains hangers） |
|||
|
14 |
Accessories |
Female industrial connectors |
|||
|
15 |
Product marking |
Product name |
Rack PDU |
MAX current |
32A |
|
Model |
SQ14(12E2e)1F60A2 |
Safety |
N/A |
||
|
Rated voltage |
220V AC |
Maker |
SQ-ELECTRONICS |
||
|
Rated current |
32A |
|
|
||
