No. |
Item |
Basic description |
|
|
1 |

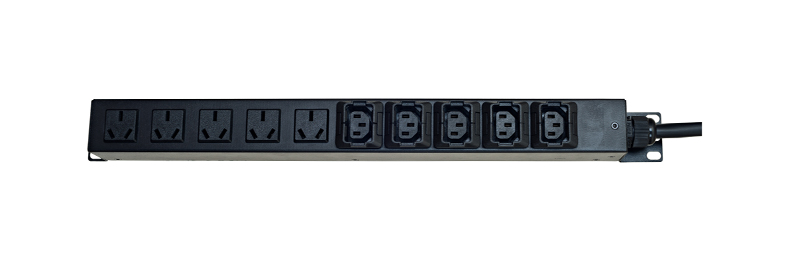

Product Series |
Basic |
|
|
2 |
Receptacle Type |
outputs-IEC 60320-C13（Lockable）、outputs-GB1002 10A |
|
|
3 |
Outlets |
Five outlets-IEC 60320-C13（Lockable），five
outlets-GB1002 10A |
|
|
4 |
Input |
IEC60309 &
Cable |
|
|
5 |
Installation |
1U horizontal |
|
|
6 |
Input plug |
IEC60309 IP44 16A/230V
AC 2P+PE industrial connector |
|
|
7 |
Monitor module |
||
|
8 |
Protect module |
N |
|
|
9 |
Housing color |
Black |
|
|
10 |
Specifications of input cable |
3*4mm2 ZA RVV -2m
long |
|
|
11 |

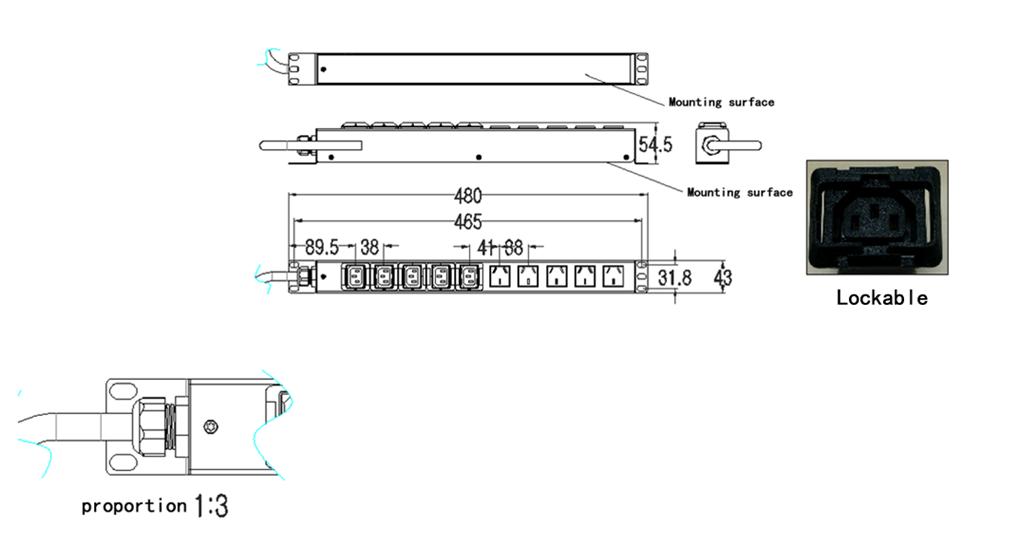

Product dimension |
Length x width x high =480 x 43 x 54.5mm |
|
|
12 |
Mounting hole center distance |
465mm |
|
|
13 |
Housing length |
480mm |
|
|
14 |
Accessories |
Female IEC60309 |
|
|
15 |
Product marking |
Product name |
Rack PDU |
|
Model |
SQ10(5E5G)1F30A2 |
||
|
Rated voltage |
220V AC |
||
|
Rated current |
16A |
||
|
MAX current |
16A |
||
|
Safety |
N/A |
||
|
Maker |
SQ-ELECTRONICS |
||
