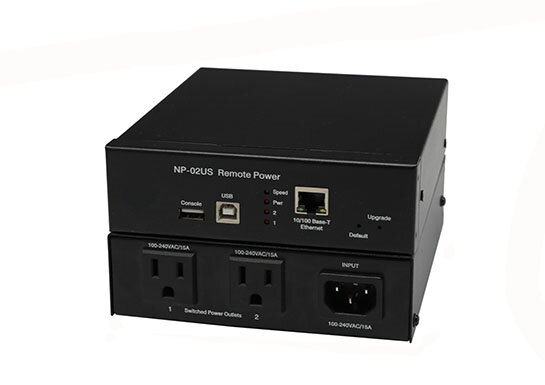

NP-02US PDU provides intelligent remote power management operations, allowed by diversified ways to access and control including network protocols and local etc control mode, multistage system administrative privileges, network security account can be simple, rapid and reliable implementation of the power control，parameter monitoring and status of the equipment real-time detection on.
|
Features |
l One USB console port & one 10M/100M-T RJ45
Ethernet port, support AUTO-MDIX. l Support
DHCP or static
IP configure l Integrated SNMP agent and Trap notification message capability l POP3/SMTP for sending and receiving control
commands or user data l Support password protecting user
management，8 user at most, and the port
owner and access permission could be set l Support 2 ports control，and could be customized l Support
port
name,
power on status and owner setting l User’s software upgrading
is available |
|
Functions |
l
Web,Telnet,RS232,SNMP,Email management access lSupport local/remote each port current, voltage, power, power
factor revealed l
Current
alarm threshold by locale, email, trap methods l
Event timers/clock for each
power outlet. l Switch and reboot each outlets l Port reservation for different permissions. l
Auto-ping for each
power outlet by ICMP ping
package, and can be
reboot. l Simple internet firewall, forbid remote access
illegally |
|
Electrical parameter |
|
|
Enter Plug |
1 |
|
Supply Plug |
NEMA5-15P |
|
Equipment end |
IEC60320-C14 |
|
Outlets |
(2) NEMA5-15R |
|
Input Current |
15 Amp |
|
Input Voltage |
110 VAC |
|
Console Port |
Baud rate:115200; 8 data bits ; No parity;1 stop bit, no hardware handshaking |
|
Ethernet |
10/100 Base-T, support
AUTO-MDIX |
|
Network Protocol |
ICMP, IP, TCP/UDP, DHCP, Telnet, DNS, POP3/SMTP, SNMP, HTTP |
|
Display |
6LEDs |
|
Other parameter |
|
|
Chassis |
W: 0.59＂ (150mm) |
|
D: 0.665＂ (170mm) |
|
|
H: 1.75＂ (44mm) |
|
|
Operating Temperature |
0°C – 50°C |
|
Storage Temperature |
-29°C – 60°C |
|
Humidity |
10-90% RH |
